1. Input voltage:380VAC

2. Input frequency:50HZ

3. ambient temperature: 30°

4. Input current: device1: 105A

5. Output power:50KW

6. Output current:equipment1: 147A

7. Output frequency:14.2KHZ

8. test equipment

9. Heating equipment: 1 PH-80KW device

10. Warm gun: 1

11. Induction heating equipment startup power:50kw (10 heating modules, 5kw per module)

12. Induction heating reaching temperature time: Heating time16 minutes, temperature: 130 ℃

13. Total electricity consumption:50kw * 0.2667=13.33kwh (degrees)

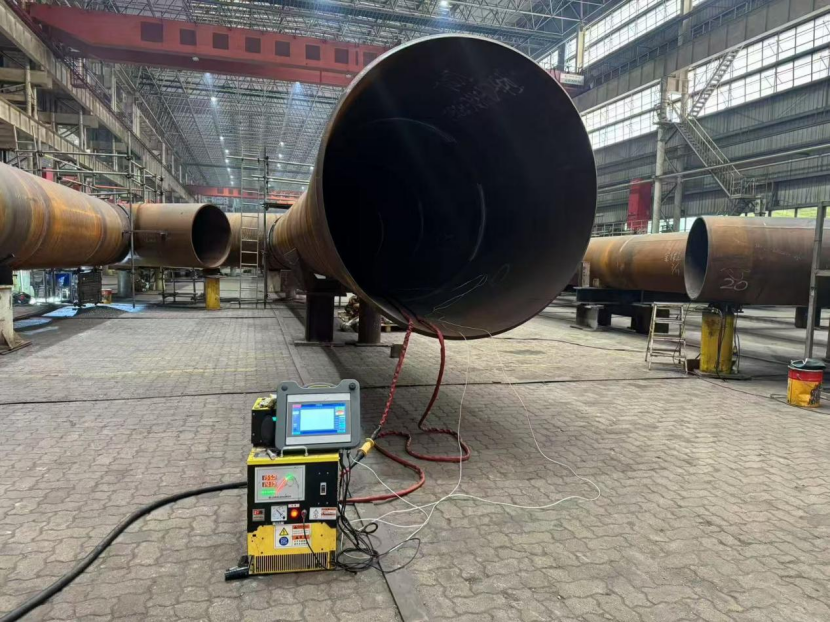

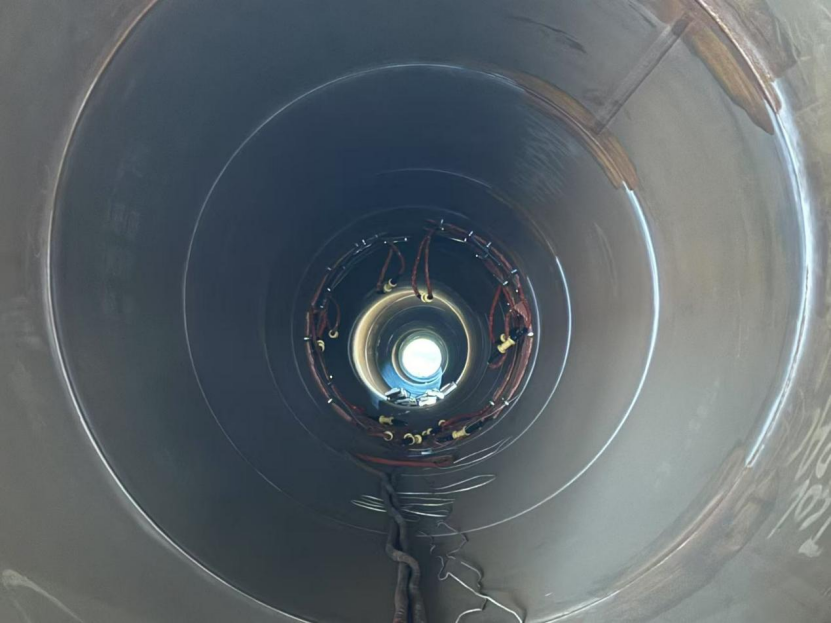

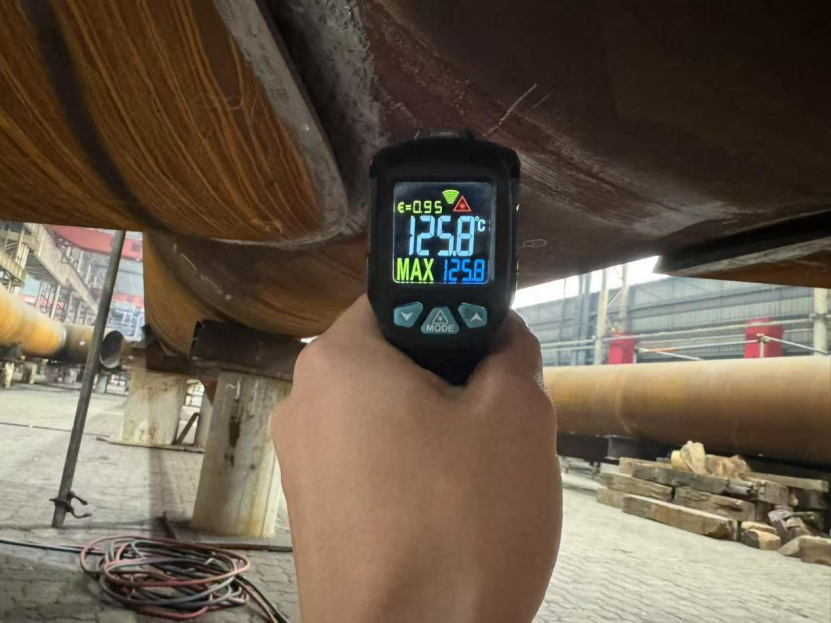

14. on-site photos
